Question Details

A cylindrical bar has a length 𝐿 = 5 π‘š and cross section area 𝑆 = 10 π‘š2 . The bar is made of a linear elastic material with a density ρ = 2700 kg/m3 and Young’s modulus E = 70 GPa. The bar is suspended as shown in the figure and is in a state of uniaxial tension due to its self-weight. The elastic strain energy stored in the bar equals _________ J. (Rounded off to two decimal places)

Take the acceleration due to gravity as 𝑔 = 9.8 m/s2 .

Show Answer
Correct Answer
2.08

Solution :

The correct answer is 2.08.

Step-by-step Explanation:

Consider a vertical cylindrical bar of length L suspended from its upper end, subject to its own weight. Let:

y = distance measured from the free (bottom) end of the bar
ρ = density of the material = 2700 kg/m3
S = cross-sectional area = 10 m2
E = Young's modulus = 70 GPa=70Γ—109 N/m2
g = acceleration due to gravity = 9.8 m/s2

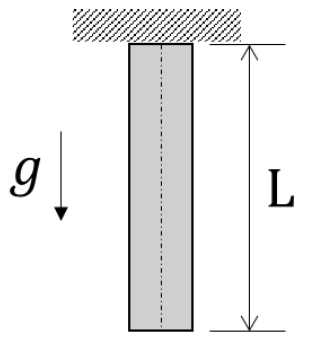

As seen in the provided diagram, the bar is suspended from the top and extends downwards vertically under the influence of gravity g over its length L.

At any cross-section at a distance y from the free bottom end, the tension force P(y) is equal to the weight of the portion of the bar below that section:

P(y)=ρgSy

The elastic strain energy stored in an infinitesimal element of length dy is given by:

dU=[P(y)]2dy2ES=(ρgSy)2dy2ES=ρ2g2Sy2dy2E

Integrating this expression from y=0 to y=L yields the total elastic strain energy stored in the bar:

U=∫0Lρ2g2Sy22Edy=ρ2g2S2E[y33]0L=ρ2g2SL36E

Substitute the given numerical values into the formula:

U=(2700)2Γ—(9.8)2Γ—10Γ—536Γ—70Γ—109

First, calculate the numerator:

(2700)2=7,290,000

(9.8)2=96.04

53=125

Numerator=7,290,000Γ—96.04Γ—10Γ—125=8.751645Γ—1011

Next, calculate the denominator:

Denominator=6Γ—70Γ—109=4.2Γ—1011

Now, compute the total elastic strain energy:

U=8.751645Γ—10114.2Γ—1011β‰ˆ2.0837 J

Rounding to two decimal places, we get:

Uβ‰ˆ2.08 J
