A prismatic, straight elastic, cantilever beam is subjected to a linearly distributed transverse load as shown below. If the beam length is L, Young’s modulus E, and area moment of inertia I, the magnitude of the maximum deflection is

Options

A

qL4/60EI

B

qL4/30EI

C

qL4/10EI

D

qL4/15EI

Show Answer
Correct Answer
B
qL4/30EI

Solution :

The correct answer is qL4/30EI.

Problem Description & Coordinate System:

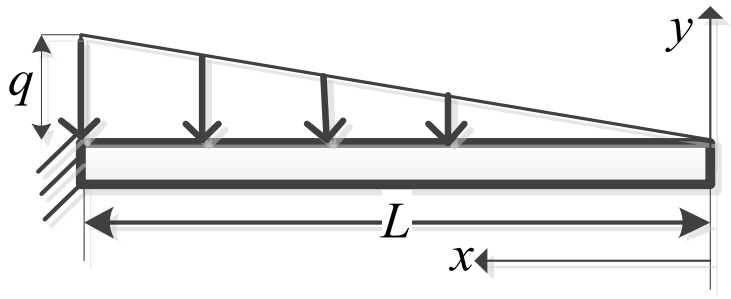

As shown in the diagram, we have a cantilever beam of length L fixed at the left end and free at the right end. The coordinate system is set up with:
1. The origin at the free end (right end).
2. The horizontal axis x directed to the left.
3. The vertical axis y pointing upwards.
4. A linearly distributed load (triangular load) acting downwards, with intensity q at the fixed support (x=L) and 0 at the free end (x=0).

Thus, the load intensity at any point x from the free end is given by:
w(x)=qxL

Bending Moment Equation:
Consider a section at a distance x from the free end. The total load acting on the segment of length x to the right of the section is:
W(x)=12·x·w(x)=qx22L

This load acts at a distance of x3 from the section. Therefore, the bending moment M(x) at this section is:
M(x)=-W(x)·x3=-qx36L

Euler-Bernoulli Beam Equation:
According to the Euler-Bernoulli beam deflection theory:
EId2ydx2=M(x)=-qx36L

Integrating the equation once with respect to x to find the slope:
EIdydx=-qx424L+C1

Applying the boundary condition for slope at the fixed end (x=L), where dydx=0:
0=-qL424L+C1⇒C1=qL324

Thus, the slope equation becomes:
EIdydx=-qx424L+qL324

Integrating a second time to find the deflection y:
EIy=-qx5120L+qL3x24+C2

Applying the boundary condition for deflection at the fixed end (x=L), where y=0:
0=-qL5120L+qL424+C2
0=-qL4120+5qL4120+C2⇒C2=-qL430

Thus, the deflection curve equation is:
EIy(x)=-qx5120L+qL3x24-qL430

Maximum Deflection:
The maximum deflection occurs at the free end (x=0):
EIy(0)=-qL430⇒y(0)=-qL430EI

Taking the magnitude of the deflection:
|δmax|=qL430EI
