Question Details

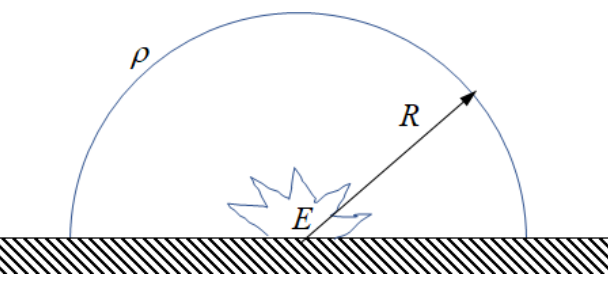

An explosion at time t = 0 releases energy 𝐸 at the origin in a space filled with a gas of density Οƒ . Subsequently, a hemispherical blast wave propagates radially outwards as shown in the figure.

Let R denote the radius of the front of the hemispherical blast wave. The radius R follows the relationship 𝑅 = π‘˜ 𝑑 π‘ŽπΈ π‘πœŒ 𝑐 , where k is a dimensionless constant. The value of exponent a is ___________. (Rounded off to one decimal place)

Show Answer

Correct Answer :

0.4

Solution :

The correct answer is 0.4.

Step-by-step Explanation:

We are given that the radius of the hemispherical blast wave, R, depends on time t, energy E, and gas density ρ (indicated in the diagram as ρ and in the text as Οƒ) according to the following relation:

R=ktaEbρc

where k is a dimensionless constant.

Let us write down the dimensions of each variable involved using mass (M), length (L), and time (T):

1. Radius R is a length dimension:
[R]=L

2. Time t is a time dimension:
[t]=T

3. Energy E has dimensions of work or kinetic energy:
[E]=ML2T-2

4. Density ρ is mass per unit volume:
[ρ]=ML-3

Substituting these dimensions into the relationship, we get:

M0L1T0=(T)a(ML2T-2)b(ML-3)c

Simplifying the right-hand side by grouping the bases M, L, and T:

M0L1T0=Mb+cL2b-3cTa-2b

By comparing the exponents of M, L, and T on both sides, we get a system of three linear equations:

For M:
b+c=0

For L:
2b-3c=1

For T:
a-2b=0

Now, we solve these equations step-by-step:

From the mass equation:
c=-b

Substituting c=-b into the length equation:
2b-3(-b)=1
5b=1
b=0.2

Now, substituting b=0.2 into the time equation to find a:
a=2b
a=2(0.2)=0.4

Thus, the value of the exponent a is 0.4.
