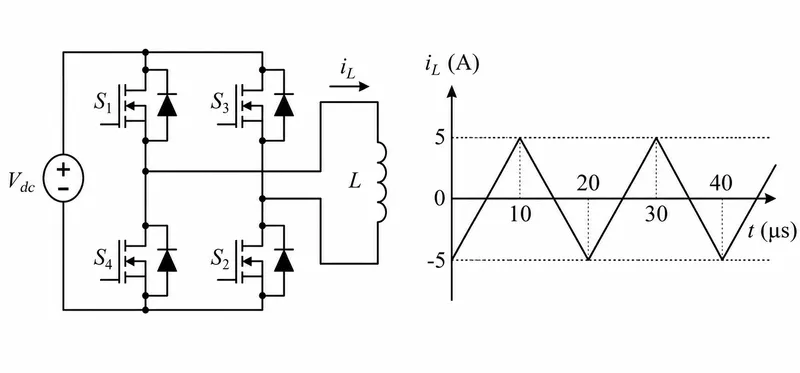

Consider the single-phase voltage source inverter circuit feeding an inductive load (L). The inductor current (iL) in the steady state is triangular with a peak value of 5 A as shown. The rms value of the current through the switch S1 is:


Options

A

2.88 A

B

2.04 A

C

3.54 A

D

2.50 A

Show Answer
Correct Answer
B 2.04 A

Solution :

The correct answer is 2.04 A.

Step-by-Step Explanation:

1. Understanding the Waveform and Circuit Operation
From the given waveform of the inductor current iL(t), we can observe the following:

  • The peak current value is Ip=5 A.
  • The total time period of the load current is T=20 μs.
  • During the first half-cycle (0<t<10 μs), a positive voltage is applied across the inductive load, causing the current to increase linearly from -5 A to 5 A.

2. Conduction Interval of Switch S1
During the positive voltage half-cycle (0<t<10 μs):

  • For 0<t<5 μs, the load current iL is negative. In this interval, the current flows back to the source through the feedback/anti-parallel diodes D1 and D2.
  • For 5<t<10 μs, the load current iL is positive. This current flows through the active switches S1 and S2.
Thus, the switch S1 only conducts during the interval 5 μs<t<10 μs (which has a duration of 5 μs).

3. Mathematical Derivation of the RMS Current through S1
Let us define a local time variable t'=t-5 for the conduction interval of S1, where t' ranges from 0 to 5 μs. During this period, the current through S1 increases linearly from 0 to 5 A:
iS1(t')=55t'=t'
Calculating the RMS value of the current over the active half-cycle period (Th=10 μs):
IS1,rms=1Th∫05(t')2dt'
Substitute the values and evaluate the integral:
IS1,rms=110[(t')33]05=110·1253=12530=256
Evaluating the square root:
IS1,rms=56≈2.0412 A
Thus, the RMS current through the switch S1 is 2.04 A.
