Question Details

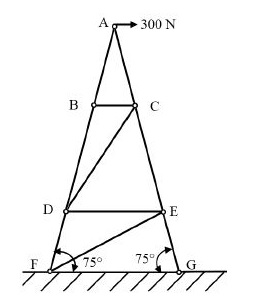

The figure shows an idealized plane truss. If a horizontal force of 300 N is applied at point A, then the magnitude of the force produced in member CD is ________N.

Show Answer
Correct Answer
0

Solution :

To find the magnitude of the force in member CD, we can analyze the joints of the truss using the method of joints and the properties of zero-force members.

Step 1: Identify Collinear Members and Angles
From the given figure:

  • The outer members on the left side, AB, BD, and DF, are collinear and lie along a single straight line.
  • The outer members on the right side, AC, CE, and EG, are also collinear and lie along a single straight line.
  • Members BC and DE are horizontal.

Step 2: Analyze Joint B
Let us consider the equilibrium of joint B. The members meeting at joint B are:

  • AB and BD (which are collinear).
  • BC (which is horizontal and not collinear with AB and BD).
There is no external load acting at joint B.

By taking the sum of forces perpendicular to the line of members ABD:

FBC · sin ( θ ) = 0

where θ is the angle between the member BC and the line ABD (which is non-zero). Since sin(θ)≠0, we must have:

FBC = 0

Step 3: Analyze Joint C
Now, let us analyze joint C. The members meeting at joint C are:

  • AC and CE (which are collinear).
  • BC (horizontal).
  • CD (diagonal).
Since we established in Step 2 that FBC=0, member BC exerts no force on joint C.

Thus, the active forces acting at joint C are only from the collinear members AC and CE, and the diagonal member CD.

For the joint to be in equilibrium, the sum of forces perpendicular to the collinear line ACE must be zero:

FCD · sin ( φ ) = 0

where φ is the angle between the member CD and the line ACE. Because φ≠0, it follows that:

FCD = 0

Thus, the force produced in member CD is 0 N.
