The figure shows two fluids held by a hinged gate. The atmospheric pressure is Pa = 100 kPa. The moment per unit width about the base of the hinge is ____________ kNm/m. (Rounded off to one decimal place) Take the acceleration due to gravity to be g = 9.8 m/s2 .

Show Answer
Correct Answer
57.2

Solution :

The correct answer is 57.2.

1. Analysis of the Given Figure and Data:

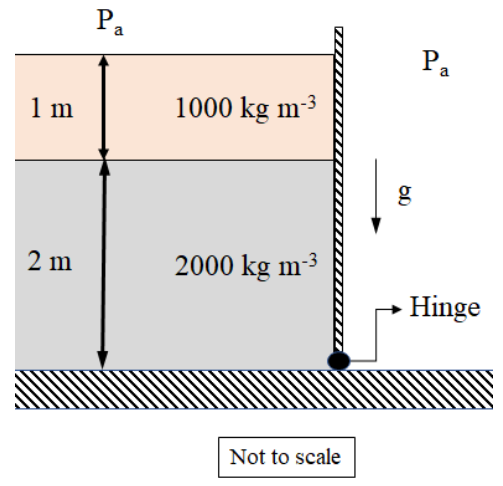

Based on the provided diagram, a vertical gate holds two layers of fluids:
• Upper fluid layer: height h1=1m and density ρ1=1000kg/m3
• Lower fluid layer: height h2=2m and density ρ2=2000kg/m3
• The atmospheric pressure Pa=100kPa acts on both the free surface of the upper fluid and the dry right-hand side of the gate. Thus, the atmospheric pressure cancels out, and we can perform all calculations using gauge pressure.
• The gate is hinged at its base. Let us set a vertical coordinate axis y originating at the hinge (y=0 at the base) and pointing vertically upwards. The gate spans from y=0 to the top of the fluid at y=3m.

2. Pressure Distribution (Gauge Pressure):
For the upper fluid layer (2≤y≤3):
P(y)=ρ1g(3-y)
P(y)=1000×9.8×(3-y)=9800(3-y)Pa

At the interface (y=2m), the gauge pressure is:
Pinterface=9800×(3-2)=9800Pa

For the lower fluid layer (0≤y≤2):
P(y)=Pinterface+ρ2g(2-y)
P(y)=9800+2000×9.8×(2-y)=9800+19600(2-y)Pa

3. Moment per Unit Width about the Hinge:
The moment per unit width about the base (y=0) is given by the integral:
M=∫03yP(y)dy=I1+I2

Where:
I1=∫23y×9800(3-y)dy
I2=∫02y9800+19600(2-y)dy

Evaluating I1:
I1=9800∫23(3y-y2)dy=98003y22-y3323
I1=9800272-9-6-83=98004.5-3.3333=9800×76≈11433.33N·m/m

Evaluating I2:
Simplify the integrand first:
P(y)=9800+39200-19600y=49000-19600y
I2=∫02(49000y-19600y2)dy=24500y2-19600y3302
I2=24500(4)-19600(8)3=98000-52266.67≈45733.33N·m/m

Total Moment:
M=11433.33+45733.33=57166.67N·m/m=57.1667kNm/m

Rounding to one decimal place, the moment per unit width is 57.2 kNm/m.
