A cuboidal part has to be accurately positioned first, arresting six degrees of freedom and then clamped in a fixture, to be used for machining. Locating pins in the form of cylinders with hemi-spherical tips are to be placed on the fixture for positioning. Four different configurations of locating pins are proposed as shown. Which one of the options given is correct?


Options

A

Configuration P1 arrests 6 degrees of freedom, while Configurations P2 and P4 are over-constrained and Configuration P3 is under-constrained.

B

Configuration P2 arrests 6 degrees of freedom, while Configurations P1 and P3 are over-constrained and Configuration P4 is under-constrained.

C

Configuration P3 arrests 6 degrees of freedom, while Configurations P2 and P4 are over-constrained and Configuration P1 is under-constrained

D

Configuration P4 arrests 6 degrees of freedom, while Configurations P1 and P3 are over-constrained and Configuration P2 is under-constrained.

Show Answer
Correct Answer

Solution :

Correct Answer:
Configuration P1 arrests 6 degrees of freedom, while Configurations P2 and P4 are over-constrained and Configuration P3 is under-constrained.

Detailed Explanation:

1. Understanding the 3-2-1 Principle of Location
To accurately position a cuboidal workpiece in a fixture for machining, we must arrest its degrees of freedom (DoF). A free rigid body in three-dimensional space has 6 degrees of freedom:
• 3 translational movements along the X, Y, and Z axes.
• 3 rotational movements about the X, Y, and Z axes.
To prevent movement in these directions, locating pins are placed against three mutually perpendicular datum planes using the 3-2-1 principle:

Total constrained degrees of freedom = 3 + 2 + 1 = 6

• Primary Datum Plane (3 pins): Placing three pins on the bottom horizontal surface establishes a plane. This arrests 3 degrees of freedom (1 translation along the vertical axis, and 2 rotations about the horizontal axes).
• Secondary Datum Plane (2 pins): Placing two pins on a vertical side surface arrests 2 degrees of freedom (1 translation perpendicular to that surface, and 1 rotation about the remaining axis).
• Tertiary Datum Plane (1 pin): Placing one pin on a perpendicular vertical end surface arrests the final 1 degree of freedom (translation perpendicular to this surface).

2. Analyzing the Configurations shown in the Image

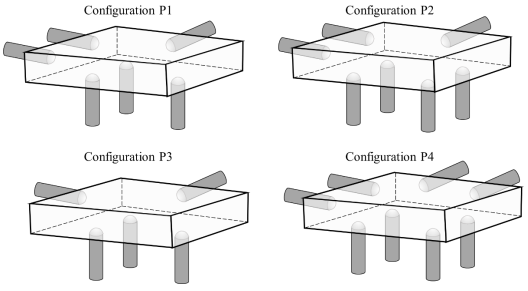

Configuration P1:
• Bottom surface: contains 3 vertical locating pins with hemi-spherical tips.
• Back vertical surface: contains 2 horizontal locating pins.
• Left vertical surface: contains 1 horizontal locating pin.
This matches the 3-2-1 principle exactly. Therefore, Configuration P1 arrests exactly 6 degrees of freedom and provides correct and stable positioning.

Configuration P2:
• Bottom surface: contains 4 vertical locating pins.
• Back vertical surface: contains 2 horizontal locating pins.
• Left vertical surface: contains 1 horizontal locating pin.
Since three points are mathematically sufficient to define a plane, the fourth pin on the bottom surface introduces a redundant constraint. This leads to a total of 7 pins, making Configuration P2 over-constrained (which can cause the part to rock if the surface is not perfectly flat).

Configuration P3:
• Bottom surface: contains 3 vertical locating pins.
• Back vertical surface: contains only 1 horizontal locating pin.
• Left vertical surface: contains 1 horizontal locating pin.
With only 1 pin on the back surface, the workpiece is free to rotate about the vertical axis. Having a total of 5 pins means Configuration P3 is under-constrained.

Configuration P4:
• Bottom surface: contains 4 vertical locating pins.
• Back vertical surface: contains 2 horizontal locating pins.
• Left vertical surface: contains 2 horizontal locating pins.
With a total of 8 locating pins, this layout has multiple redundant constraints on both the bottom and side planes, making Configuration P4 highly over-constrained.
