Question Details

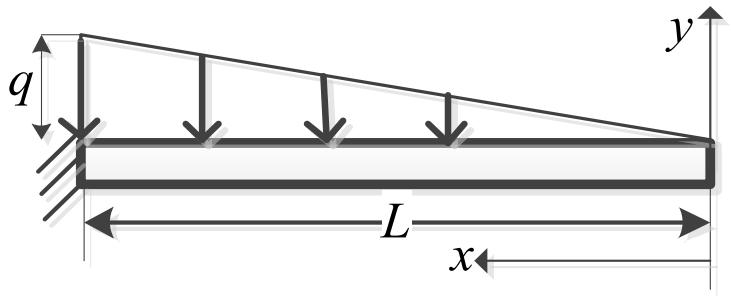

A prismatic, straight elastic, cantilever beam is subjected to a linearly distributed transverse load as shown below. If the beam length is L, Young’s modulus E, and area moment of inertia I, the magnitude of the maximum deflection is

Options

A

qL4/60EI

B

qL4/30EI

C

qL4/10EI

D

qL4/15EI

Show Answer
Correct Answer

Solution :

The correct option is qL4/30EI.

Let us derive the maximum deflection of a cantilever beam of length L, flexural rigidity EI, subjected to a linearly varying transverse load (triangular load) that increases from 0 at the free end (let's set x=0 at the free end) to a maximum value q at the fixed end (x=L).

The intensity of the load at any distance x from the free end is given by:
w ( x ) = q x L

To find the bending moment M(x) at a distance x from the free end, we consider the load acting on the segment of length x. The total load on this segment is the area of the triangular load distribution:
W = 1 2 · x · q x L = q x 2 2 L

The centroid of this triangular load on the segment of length x lies at a distance of x3 from the section at x. Thus, the bending moment M(x) is:
M ( x ) = - q x 2 2 L · x 3 = - q x 3 6 L

According to the Euler-Bernoulli beam theory, the governing differential equation for the deflection curve y is:
E I d 2 y d x 2 = M ( x ) = - q x 3 6 L

Integrating once with respect to x gives the slope equation:
E I d y d x = - q x 4 24 L + C 1

Integrating a second time gives the deflection equation:
E I y = - q x 5 120 L + C 1 x + C 2

To determine the constants of integration C1 and C2, we apply the boundary conditions at the fixed end (x=L):
1. Slope is zero at the fixed support: dydxx=L=0
0 = - q L 4 24 L + C 1 ⇒ C 1 = q L 3 24

2. Deflection is zero at the fixed support: yx=L=0
0 = - q L 5 120 L + q L 3 24 L + C 2
0 = - q L 4 120 + q L 4 24 + C 2
C 2 = q L 4 120 - q L 4 24 = q L 4 ( 1 - 5 ) 120 = - 4 q L 4 120 = - q L 4 30

The equation for the deflection curve is:
E I y ( x ) = - q x 5 120 L + q L 3 x 24 - q L 4 30

The maximum deflection occurs at the free end (x=0):
E I y ( 0 ) = - q L 4 30
Therefore, the magnitude of the maximum deflection is:
δ max = | y ( 0 ) | = q L 4 30 E I
