Question Details

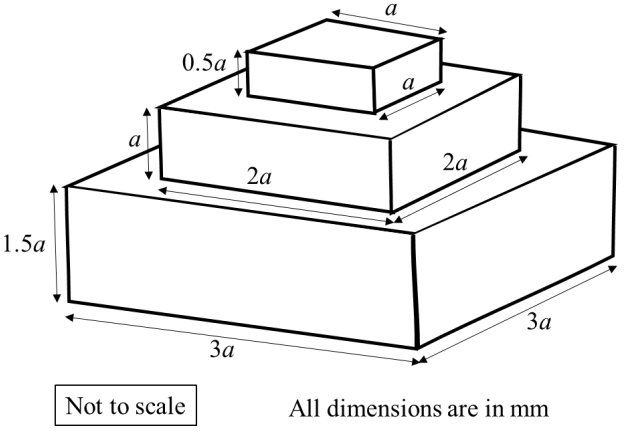

A solid part (see figure) of polymer material is to be fabricated by additive manufacturing (AM) in square-shaped layers starting from the bottom of the part working upwards. The nozzle diameter of the AM machine is a/10 mm and the nozzle follows a linear serpentine path parallel to the sides of the square layers with a feed rate of a/5 mm/min.

Ignore any tool path motions other than those involved in adding material, and any other delays between layers or the serpentine scan lines. The time taken to fabricate this part is ___________ minutes. (Answer in integer)

Show Answer
Correct Answer
9000

Solution :

Correct Answer: The time taken to fabricate this part is 9000 minutes.

Step-by-Step Explanation:

1. Calculate the Total Volume of the Solid Part:
From the provided image, we can identify that the solid part is composed of three stacked square blocks (bottom, middle, and top):

  • Bottom Block:
    Dimensions: Length = 3a mm, Width = 3a mm, Height = 1.5a mm.
    Volume of the bottom block, V1:
    V1=3a×3a×1.5a=13.5a3 mm3
  • Middle Block:
    Dimensions: Length = 2a mm, Width = 2a mm, Height = a mm.
    Volume of the middle block, V2:
    V2=2a×2a×a=4a3 mm3
  • Top Block:
    Dimensions: Length = a mm, Width = a mm, Height = 0.5a mm.
    Volume of the top block, V3:
    V3=a×a×0.5a=0.5a3 mm3

Adding the volumes of all three sections gives the total volume V of the solid part:
V=V1+V2+V3
V=13.5a3+4a3+0.5a3=18a3 mm3

2. Determine the Volumetric Deposition Rate:
In additive manufacturing, the volume of material deposited per unit time depends on the cross-sectional area of the track (road) and the scan speed (feed rate).
The nozzle diameter is:
d=a10 mm
Assuming the layer thickness and road width are both equal to the nozzle diameter d, the cross-sectional area of a single deposited road is:
A=d2=a102=a2100 mm2
The feed rate (linear velocity of deposition) is:
v=a5 mm/min
The volumetric deposition rate Q is:
Q=A×v=a2100×a5=a3500 mm3/min

3. Calculate the Total Fabrication Time:
The total time T required to fabricate the solid part is given by the ratio of the total volume to the volumetric deposition rate:
T=VQ
Substituting the expressions for V and Q:
T=18a3a3500
Simplifying the expression by cancelling a3:
T=18×500=9000 minutes
