Question Details

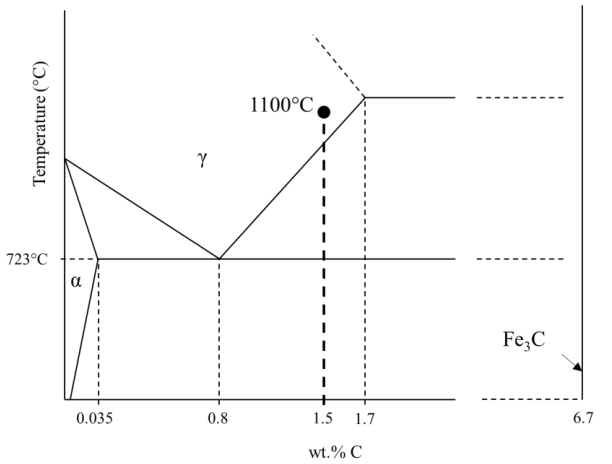

A steel sample with 1.5 wt.% carbon (no other alloying elements present) is slowly cooled from 1100 °C to just below the eutectoid temperature (723 °C). A part of the iron-cementite phase diagram is shown in the figure. The ratio of the pro-eutectoid cementite content to the total cementite content in the microstructure that develops just below the eutectoid temperature is ________. (Rounded off to two decimal places)

Show Answer
Correct Answer

0.54



Mass fraction of preoeutectiod cementite,

                                                                    m1= (1.5-0.8)/(6.7-0.8) =0.1186

Mass fraction of total cementite,     m2= (1.5-0.035)/(6.7-0.035) =0.2198

                                                                      m1/m2  = 0.1186/0.2198 =0.54


Solution :

The correct answer is 0.54.

1. Understanding the Phase Diagram and Key Data Points:
By analyzing the provided iron-cementite phase diagram, we can identify several critical data points at the eutectoid temperature (723 °C):

  • Alloy Composition (C0): The vertical dashed line shows the steel sample composition is 1.5 wt.% C.
  • Eutectoid Carbon Composition (Ce): The eutectoid point on the diagram corresponds to 0.8 wt.% C.
  • Ferrite Solubility Limit (Cα): The maximum carbon solubility in ferrite (α) at 723 °C is 0.035 wt.% C.
  • Cementite Carbon Composition (CFe3C): The carbon content of cementite (Fe3C) at the right-hand boundary is 6.7 wt.% C.

2. Calculating the Mass Fraction of Pro-eutectoid Cementite (m1):
Pro-eutectoid cementite forms as the steel is cooled through the austenite (γ) + cementite (Fe3C) region, just above the eutectoid temperature (723 °C). At this point, the phases in equilibrium are austenite of eutectoid composition (0.8 wt.% C) and pro-eutectoid cementite (6.7 wt.% C).
Using the lever rule:

m 1 = C 0 - C e C Fe 3 C - C e

Substituting the values from the diagram:

m 1 = 1.5 - 0.8 6.7 - 0.8 = 0.7 5.9 ≈ 0.1186

3. Calculating the Mass Fraction of Total Cementite (m2):
Just below the eutectoid temperature (723 °C), the austenite undergoes the eutectoid reaction to transform completely into ferrite (α) and eutectoid cementite. The total cementite present in the microstructure includes both the pro-eutectoid cementite and the eutectoid cementite. The two equilibrium phases just below 723 °C are ferrite (with 0.035 wt.% C) and cementite (6.7 wt.% C).
Using the lever rule for total cementite:

m 2 = C 0 - C α C Fe 3 C - C α

Substituting the values:

m 2 = 1.5 - 0.035 6.7 - 0.035 = 1.465 6.665 ≈ 0.2198

4. Calculating the Ratio:
Now, we find the ratio of the pro-eutectoid cementite content to the total cementite content:

Ratio = m 1 m 2 = 0.1186 0.2198 ≈ 0.5396

Rounding off to two decimal places gives 0.54.
