Question Details

Consider a counter-flow heat exchanger with the inlet temperatures of two fluids (1 and 2) being T1, in = 300 K and T2, in = 350 K. The heat capacity rates of the two fluids are C1= 1000 W/K and C2 = 400 W/K, and the effectiveness of the heat exchanger is 0.5. The actual heat transfer rate is _____ kW. (Answer in integer)

Show Answer
Correct Answer

10

Solution :

The correct answer is 10.

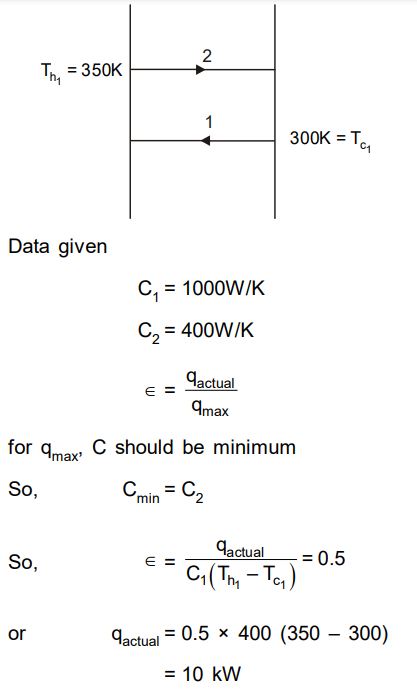

Based on the heat exchanger diagram and given data:
- Inlet temperature of fluid 1 (cold fluid), T1,in=300 K (indicated in the diagram as Tc1 = 300K)
- Inlet temperature of fluid 2 (hot fluid), T2,in=350 K (indicated in the diagram as Th1 = 350K)
- Heat capacity rate of fluid 1, C1=1000 W/K
- Heat capacity rate of fluid 2, C2=400 W/K
- Effectiveness of the heat exchanger, ε=0.5

To calculate the actual heat transfer rate, we first determine the minimum heat capacity rate, Cmin:
Cmin=min(C1,C2)=min(1000,400)=400 W/K

The maximum possible heat transfer rate (qmax) occurs when the temperature difference is at its maximum (the difference between the hot and cold fluid inlet temperatures) and is governed by the minimum heat capacity rate:
qmax=Cmin(T2,in-T1,in)

Substituting the values into the formula:
qmax=400×(350-300)=400×50=20000 W=20 kW

The effectiveness (ε) is defined as the ratio of the actual heat transfer rate (qactual) to the maximum possible heat transfer rate:
ε=qactualqmax

Rearranging the formula to solve for the actual heat transfer rate:
qactual=ε×qmax
qactual=0.5×20 kW=10 kW
