Question Details

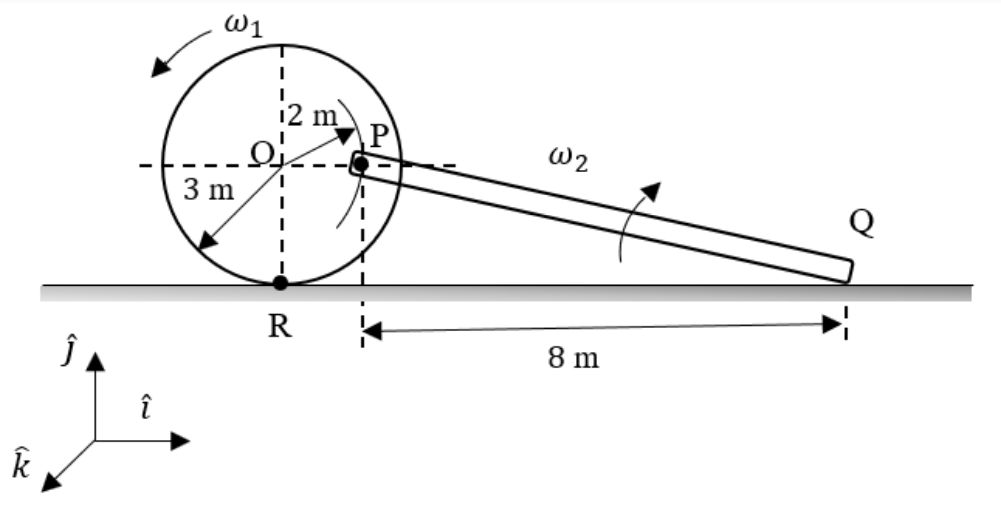

The figure shows a wheel rolling without slipping on a horizontal plane with angular velocity πœ”1. A rigid bar PQ is pinned to the wheel at P while the end Q slides on the floor. What is the angular velocity πœ”2of the bar PQ?

Options

A

πœ”2 = 2πœ”1

B

πœ”2 = πœ”1

C

πœ”2 =0.5πœ”1

D

πœ”2 = 0.25πœ”1

Show Answer
Correct Answer

Solution :

The correct answer is:
ω2 = 0.25 ω1

Step-by-Step Explanation:

We can solve this problem using two different elegant methods: the Instantaneous Center of Rotation (I-Center) Method using Kennedy's Theorem and the Vector Velocity Method.

Method 1: Instantaneous Center (I-Center) Method (Kennedy's Theorem)
Let us define the links in the system:
• Link 1: The fixed ground (surface)
• Link 2: The rolling wheel (disc)
• Link 3: The rigid bar PQ

1. Identify the I-centers of the individual links:
• Since the wheel (Link 2) rolls without slipping on the ground (Link 1), the instantaneous center of rotation between Link 1 and Link 2, denoted as I12, lies at the point of contact R.
• The pin joint P connects the wheel (Link 2) and the bar (Link 3). Hence, the relative I-center between Link 2 and Link 3 is located at the pin P, denoted as I23.
• The end Q of the bar PQ slides along the horizontal floor (Link 1). Therefore, the velocity of Q is purely horizontal, meaning its perpendicular line of motion is vertical. Thus, the I-center of the bar relative to the ground, denoted as I13, must lie on the vertical line passing through Q.

2. Apply Kennedy's Three-Center Theorem:
Kennedy's theorem states that if three bodies have relative motion, their three relative I-centers must lie on a straight line. Therefore, the I-centers I12 (at R), I23 (at P), and I13 must be collinear.
This collinear line passes through the point of contact R (I12) and the pin joint P (I23), and extends to meet the vertical line through Q at I13.

3. Use Geometry and Similar Triangles:
From the given image:
• The radius of the wheel is 3 m, so the vertical height of P above R is 3 m.
• The horizontal distance from the center O to P is 2 m.
• The horizontal distance from the vertical line through P to the point Q is 8 m.
Let B be the projection of P on the ground line. The triangle formed by I12, B, and P is similar to the triangle formed by I23 (P), A (horizontal projection of Q at the level of P), and I13.
Using similar triangles:
I12 I23 I23 I13 = I12 B P A
Substituting the horizontal lengths:
I12 P P I13 = 2 8 = 0.25

4. Calculate Angular Velocity Relationship:
Since P is the common point between the wheel (rotating with ω1 about I12) and the bar (rotating with ω2 about I13), the velocity of point P can be written as:
vP = ω1 × ( I12 P ) = ω2 × ( P I13 )
Rearranging the equation:
ω2 = ω1 × I12 P P I13 = 0.25 ω1

Method 2: Vector Velocity Method
Let us place a coordinate system at the center of the wheel O, with unit vectors i^ pointing horizontally to the right and j^ pointing vertically upwards.
• The contact point with the floor is R=(0,−3).
• The pin joint P is located at P=(2,0).
• The velocity of point P on the wheel, relative to the instantaneous center of rotation R, is:
v→P = ω→1 × r→P/R
Since the wheel rotates counterclockwise with ω→1=ω1k^ and the position vector is r→P/R=2i^+3j^:
v→P = ( ω1 k^ ) × ( 2 i^ + 3 j^ ) = − 3 ω1 i^ + 2 ω1 j^
The magnitude of the velocity of P is:
vP = ω1 32+22 = 13 ω1

Now consider the rod PQ rotating with angular velocity ω2 about its own instantaneous center I13:
• Since Q slides on the horizontal floor, the I-center I13 has the coordinates (10,y) relative to O, or relative to P is (8,y).
• The velocity vector of P must be perpendicular to the position vector r→I13/P=8i^+yj^:
v→P · r→I13/P = 0
( − 3 ω1 ) ( 8 ) + ( 2 ω1 ) y = 0 ⇒ y = 12  m
Thus, the distance from P to the I-center of the bar is:
d = 82+122 = 64+144 = 208 = 4 13  m
Therefore, the angular velocity of the bar ω2 is:
ω2 = vP d = 13 ω1 4 13 = 0.25 ω1
