Question Details

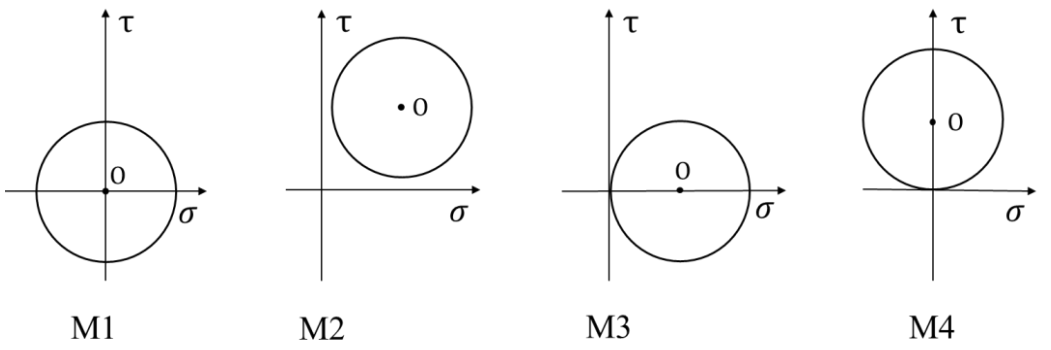

Which of the plot(s) shown is/are valid Mohr’s circle representations of a plane stress state in a material? (The center of each circle is indicated by O.)


Options

A

M1

B

M2

C

M3

D

M4

Show Answer
Correct Answer

Solution :

Correct Options: M1 and M3

Mohr's circle is a graphical representation used to determine the normal and shear stress components acting on any inclined plane within a stressed material. In the σ-τ coordinate system shown in the plots:
1. The horizontal axis represents the normal stress (σ).
2. The vertical axis represents the shear stress (τ).

For a state of plane stress, the coordinates of the center of Mohr's circle, O, are defined as:
σc τc = σx + σy 2 0
where σx and σy represent the normal stresses on two mutually perpendicular planes. Since the shear stress coordinate of the center is always zero (τc=0), the center of any valid Mohr's circle must lie on the horizontal normal stress axis (σ-axis).

Let us analyze the four plots shown in the image by observing the location of the center O relative to the axes:
- Plot M1: The center O is located exactly at the origin of the coordinate system (where σ=0 and τ=0). Since the origin lies on the σ-axis, this is a valid representation (e.g., pure shear state where σx=-σy). Hence, M1 is valid.
- Plot M2: The center O lies in the first quadrant, above the σ-axis, meaning it has a non-zero shear stress value (τc>0). This is physically impossible for a Mohr's circle. Hence, M2 is invalid.
- Plot M3: The center O lies directly on the horizontal σ-axis to the right of the origin. This represents a valid state of plane stress where the average normal stress is positive. Hence, M3 is valid.
- Plot M4: The center O lies on the vertical τ-axis above the origin, meaning σc=0 and τc>0. Since the center does not lie on the σ-axis, this representation is physically impossible. Hence, M4 is invalid.

Consequently, only M1 and M3 are valid Mohr’s circle representations of a plane stress state.
