Question Details

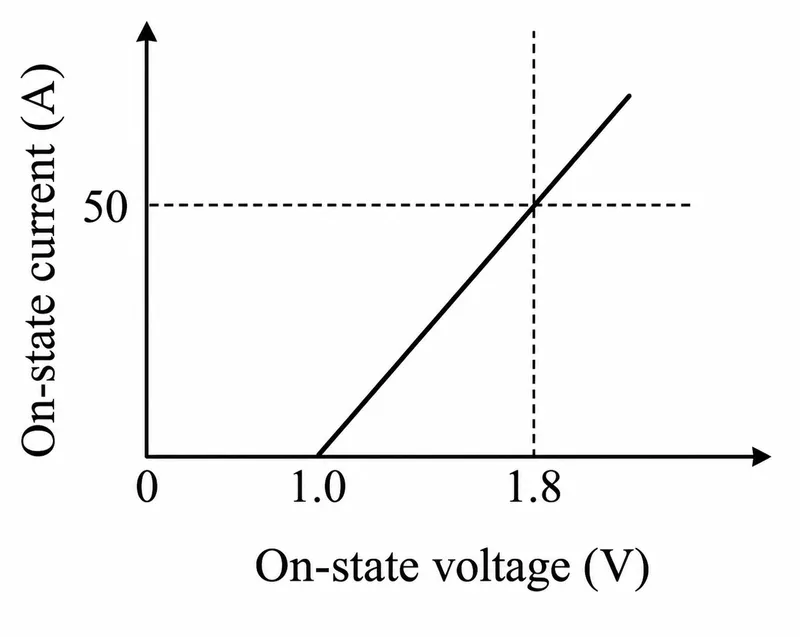

The figure shows a straight-line approximation for the forward characteristics of a power diode. A continuous on-state current of 15 A is flowing through the diode. What is the power loss in the diode?

Options

A

32.8 W

B

21.2 W

C

18.6 W

D

23.1 W

Show Answer
Correct Answer
C 18.6 W

Solution :

The correct answer is 18.6 W.

Step 1: Extract diode characteristics from the given graph
The provided image shows the piecewise linear (straight-line) approximation of the forward characteristics (On-state current vs. On-state voltage) of the power diode.
From the graph, we can identify two key coordinate points (VD,ID):
1. The line intercepts the horizontal axis (voltage) at VD=1.0 V when the current is ID=0 A. This is the threshold (or cut-in) voltage of the diode:
V T 0 = 1.0 V
2. A second point is marked by dashed lines at VD=1.8 V corresponding to a current of ID=50 A.

Step 2: Calculate the dynamic on-state resistance of the diode
The slope of the characteristic line determines the dynamic resistance (rD):
r D = Δ V D Δ I D = 1.8 V - 1.0 V 50 A - 0 A
Evaluating this expression:
r D = 0.8 V 50 A = 0.016 Ω

Step 3: Determine the forward voltage drop at a continuous current of 15 A
The forward voltage equation representing the straight-line characteristic is:
V D = V T 0 + ( I D × r D )
Substitute the given continuous current ID=15 A:
V D = 1.0 V + ( 15 A × 0.016 Ω )
V D = 1.0 V + 0.24 V = 1.24 V

Step 4: Calculate the power loss in the diode
Since a continuous current is flowing through the diode, the average power loss (Ploss) is given by the product of the diode voltage drop and the current:
P loss = V D × I D
P loss = 1.24 V × 15 A = 18.6 W
